Saratoga Amateur Radio Products

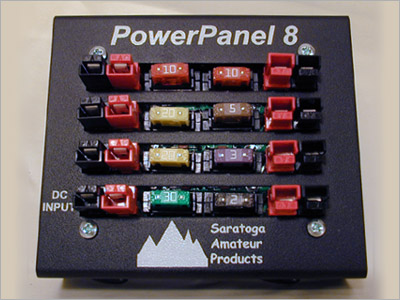

PowerPanel 8

Utilizes Anderson PowerPole Connectors
The standard in DC power connections

Download the Manual - PDF (1.047 MB)

• ARES/RACES/EMRG standard power connector
• Greatly simplify the power distribution in your shack or mobile installation.
• Move rigs between operating positions without worrying about the power cords.

These connectors have become the ARES/RACES/EMRG standard power connector.

The PowerPanel 8 is designed to provide convenient, safe and reliable power distribution for all the radios and accessories in you shack or mobile installation. It utilizes the RACES/ARES standard Anderson PowerPole connectors and makes connections fast and easy. Simplify the shack and install standard Anderson PowerPole connectors on all your 12 VDC rigs and accessories

Features

• 8 Port DC power distribution panel
• Each port is individually fused and filtered
• Uses standard mini ATC automotive fuses
• Over-voltage protection
• 30 Amp Rating
• UL94 V-0 housing material

Benefits

• Allows for minimal contact resistance at high current, wiping action cleans contact surface during disconnection
• Simplifies assembly requirements and reduces parts inventory
• Allows customized multi-pole configurations with visual color coding to match wires
• Prevents damage to connectors from being mated incorrectly
• Handles sufficient current for most Amateur Radio applications
• Provides security in knowledge that the connector chosen meets strict UL flammability ratings
