Anderson Powerpole
ARDS (ARES) and RACES connector

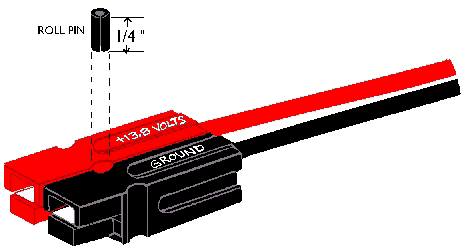

  • Housings should be mated according to the diagram above, viewing from the contact side (opposite the wire side), tongue down, hood up, RED on the LEFT, BLACK on the RIGHT. Use a 3/32-inch-diameter roll pin, 1/4 inch long, to keep the housings from sliding apart.

  • Highly conductive silver-plated copper contacts allow minimal contact resistance at high currents. Self-wiping action on make and break keeps conducting surfaces clean. Contact dents keep connectors mated in high-vibration applications and provide quick-break, snap action upon disconnect.

  • Noncorrosive stainless-steel leaf springs maintain constant contact pressure—ideal for frequent connections/disconnections and intermittent overloading. Durable, high impact-resistant, polycarbonate housing with UL94V-2 flammability ratings comes in many colors for circuit traceability and coding.

  • The 30-ampere contacts are designed for 12-16 AWG wire. The contacts can be soldered or crimped to wires.


  • Click here for an example of the powerpole (is my DC Power Outlet)

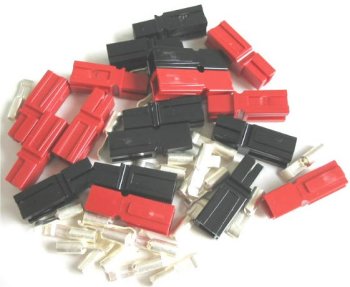

  • Connector Powerpole
    Anderson 30amp
    a set is 1 Red housing, 1 Black housing,
    2 Contacts and 1 Roll Pin

    #ELE-119
    1.25$ US
    2.00 CND
    Connector Powerpole
    Anderson 30amp
    a set is 10 Red housing, 10 Black housing,
    20 Contacts and 10 Roll Pin

    #ELE-119-10
    9.00$ US
    13.00 CND
    Connector Powerpole
    Anderson 30amp
    a set is 25 Red housing, 25 Black housing,
    50 Contacts and 25 Roll Pin

    #ELE-119-25
    19.00 US
    27.00 CND
    Chassis Mount
    6 Connectors
    (1 chassis only)

    #ELE-120
    3.50 US
    5.00 CND

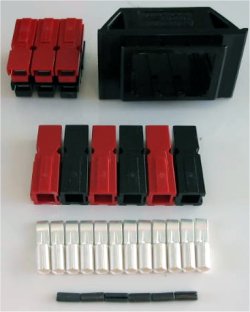

    Chassis Mount
    with Connectors
    (1 chassis and all connector)

    #ELE-120-CN
    10.00 US
    14.00 CND

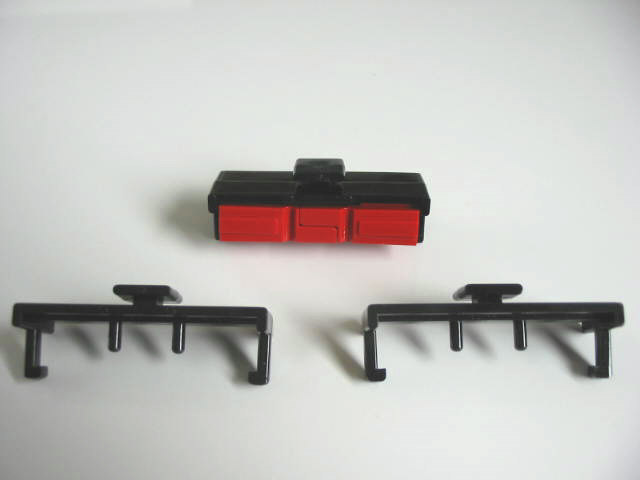

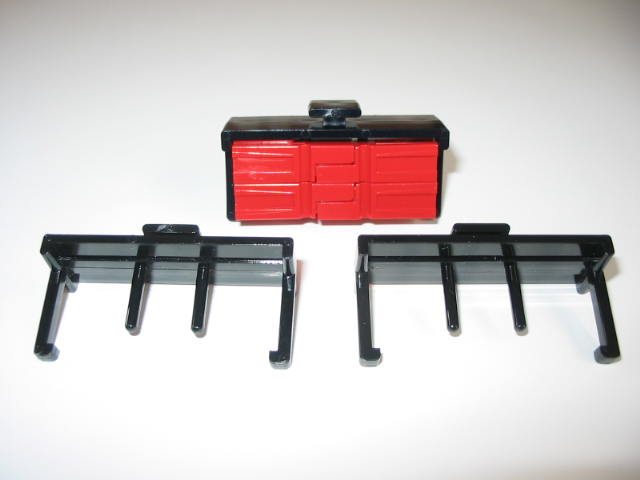

    Power Lock
    (for a 1 pair of connector)

    #ELE-134-CN
    1.25$/ea US
    1.35$/ea CND

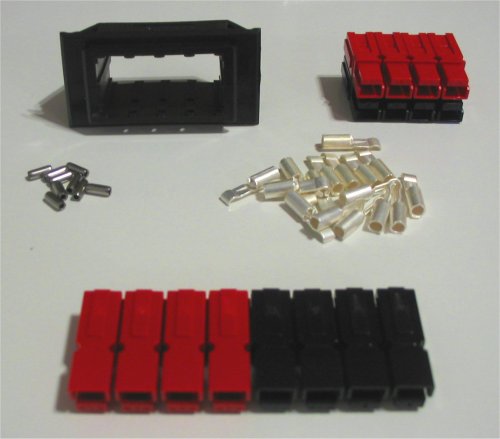

    Chassis Mount
    8 Connectors
    (1 chassis only)

    #ELE-132
    5.00 US
    7.50 CND
    Chassis Mount
    with Connectors
    (1 chassis and all connector)

    #ELE-132-CN
    13.00 US
    18.00 CND
    Power Lock
    (for a 2 pair of connector)

    #ELE-135-CN
    1.25$/ea US
    1.35$/ea CND

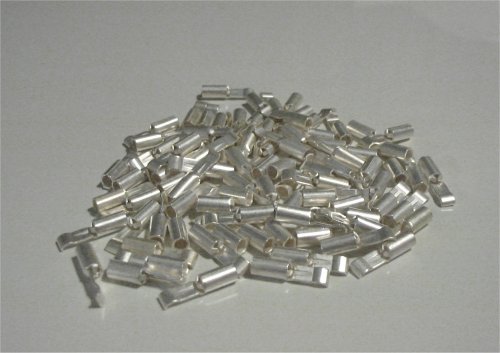

    Extra contact

    #ELE-136
    .017$/ea US
    0.25$/ea CND

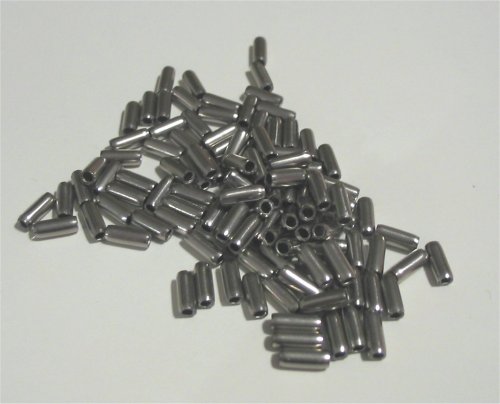

    Extra Roll pins

    #ELE-137
    0.10$/ea US
    0.15$/ea CND

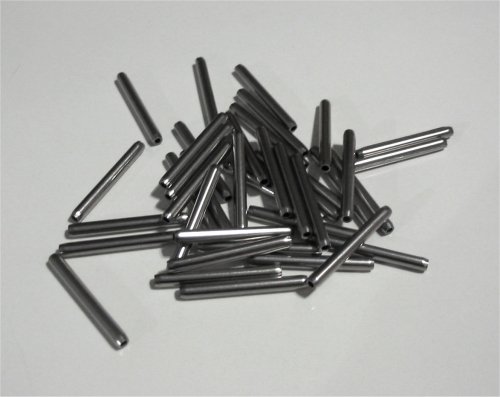

    Extra Roll pins (long)
    great with chassis

    #ELE-138
    0.15$/ea US
    0.20$/ea CND
